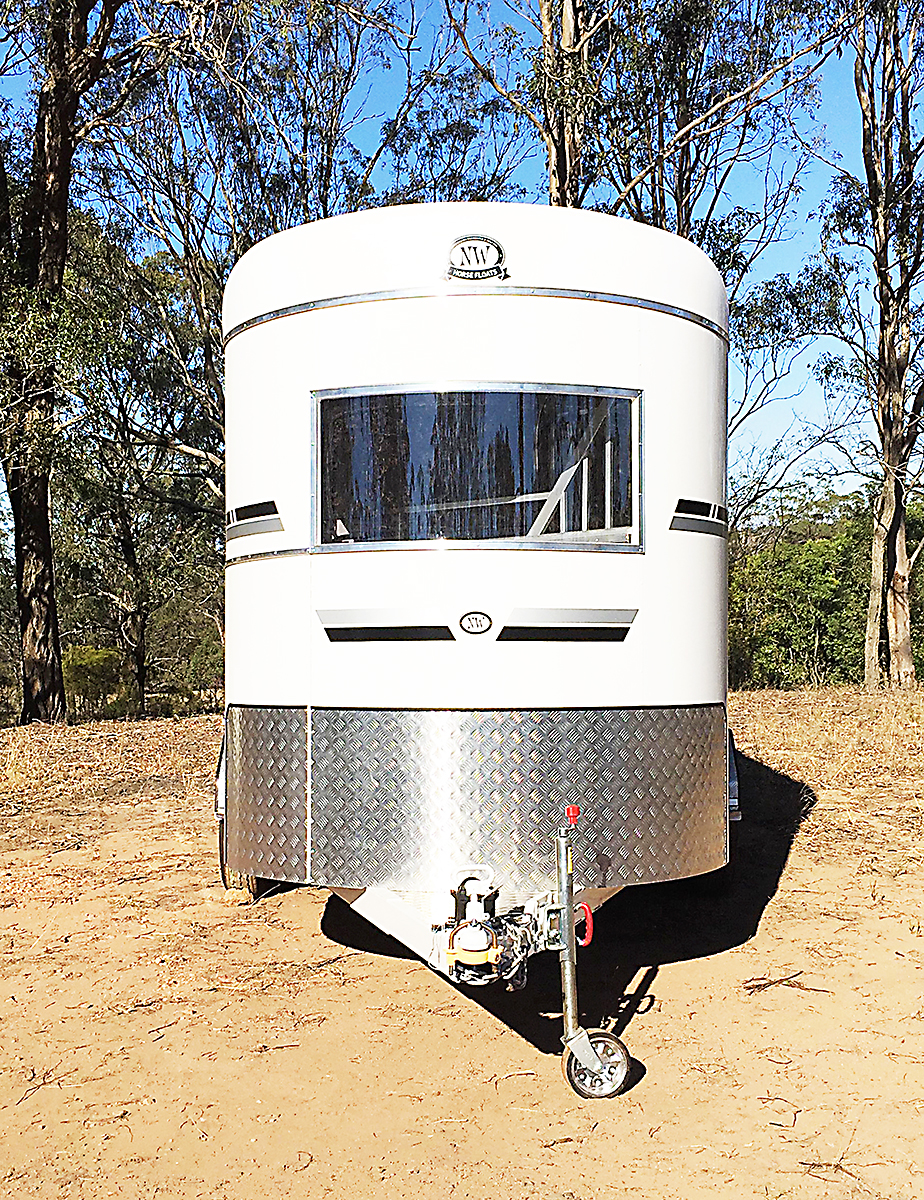

Angle Load Series

Our Angle Load Series is designed to cater for two, three and four horses
in an Open or Enclosed style, Right or Left facing.

Standard OPEN Angle Models

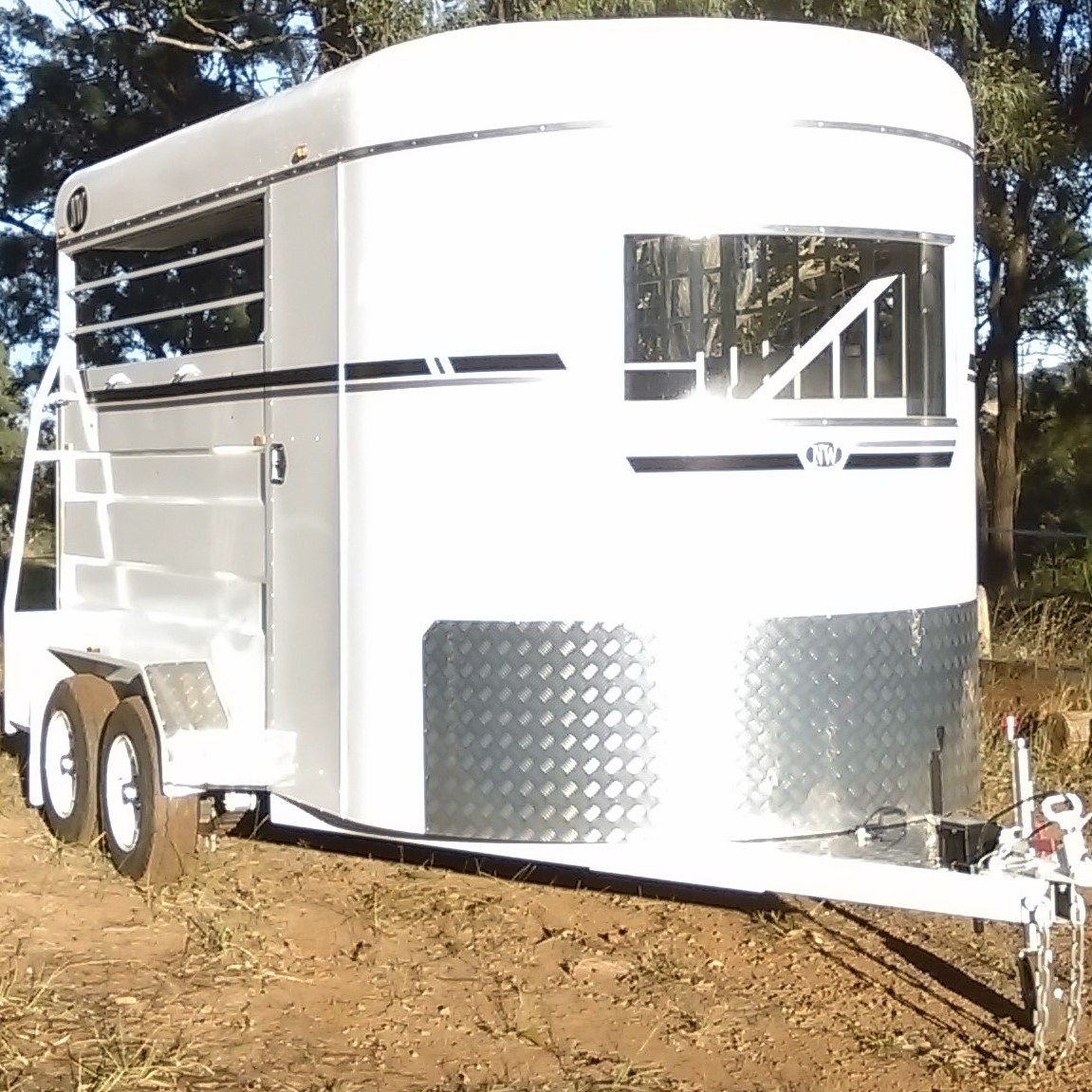

2 Horse Angle Open Model – $23,500 (Inc GST)

Specifications

Internal length: 3600mm
Internal width: 1930mm
Internal height: 2210mm
Bay length: 2450mm
Bay width: 680mm
TARE – 1100kg
GTM – 2500kg
ATM – 2500kg

Standard Inclusions

Option Right or Left facing dividers
Australian made
Australian gal steel chassis & frame, with extra floor reinforcement
10″ 4 wheel brakes
Rocker Roller Suspension
Full zinc sheeting – rust resistant
Australian (Total Hardwood) F27 structural ArmourForm flooring
Sealed rubber flooring-water tight
Swing out jockey wheel
Removable dividers
One piece fibreglass roof
2 Pac white paint
Pinstripes – choice of colours
Kickboards
Spring loaded tailgate & latches
Large tinted front window
Side access door
5x 195/14″ light weight truck tyres
Sunraiser rims
600mm High stone guards on front
Interior light
Spare wheel mounted outside
Large LED tail lights
LED side markers

Optional Extras

Option Right or left facing dividers
Rug rack 2 horse load $775
Rug rack 3 horse load $885
Rug rack 4 horse load $995
Stallion divider $100
1x Sliding windows with screens $600
2x Sliding windows with screens $1,200
4x Sliding windows with screens $2,400
4x fold down windows & inserts POA
Rear storm cover $1050
Side curtains $1200

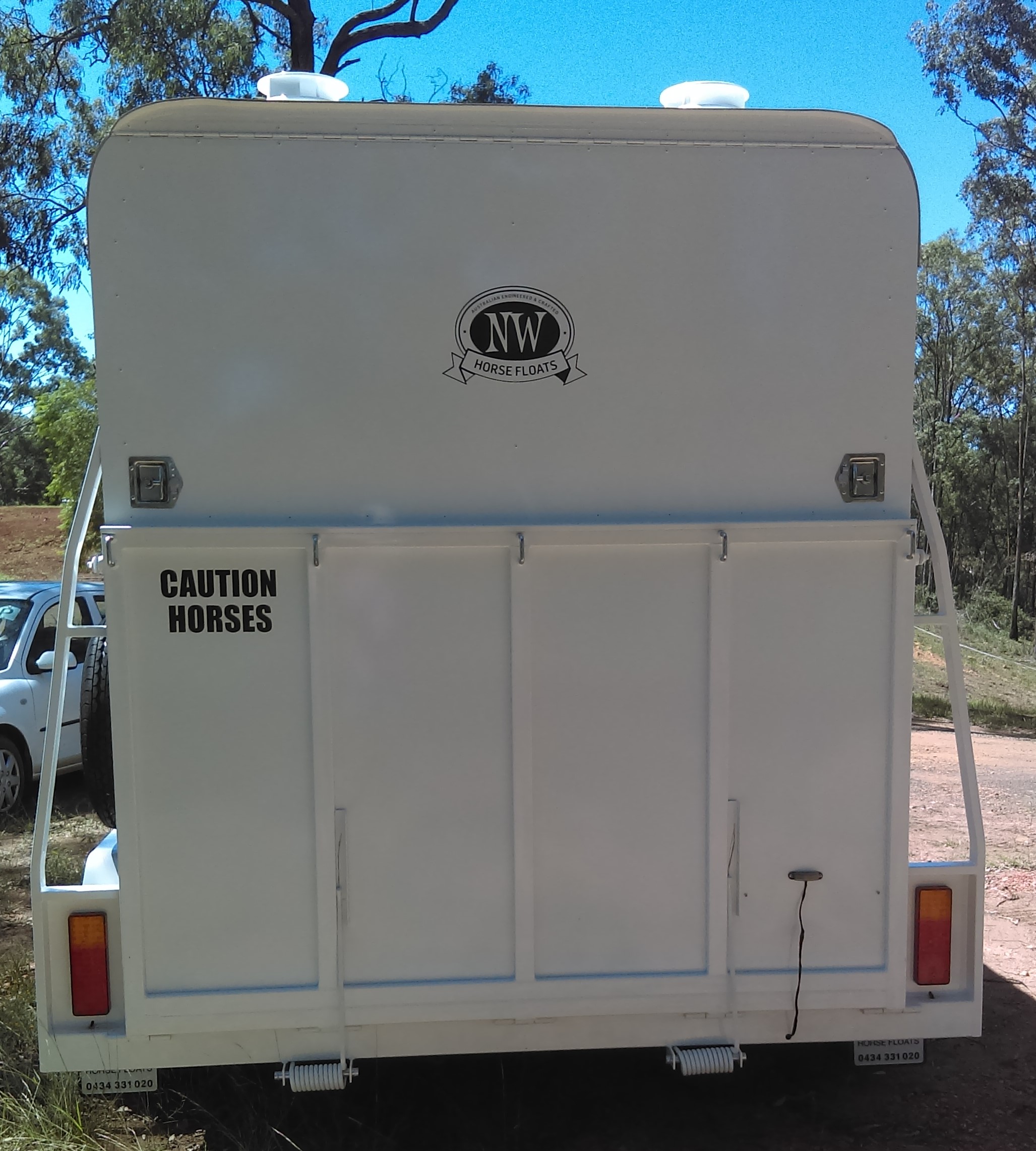

Rear lift up door with gas struts $950
Tack box on mud guard $600
Tack box on front draw bar $300
Full drop rubber on divider $220
Rubber added to head dividers $220
Rubber added to rear kick board $180
Enclosed divider – frame & board $280
Padded dividers 2x horse $450
Padded dividers 3x horse $660
Padded dividers 4x horse $880
Pop up vents x2 $200
Rotary air vents x2 $250
Tack room – 1/2 size access door $1200

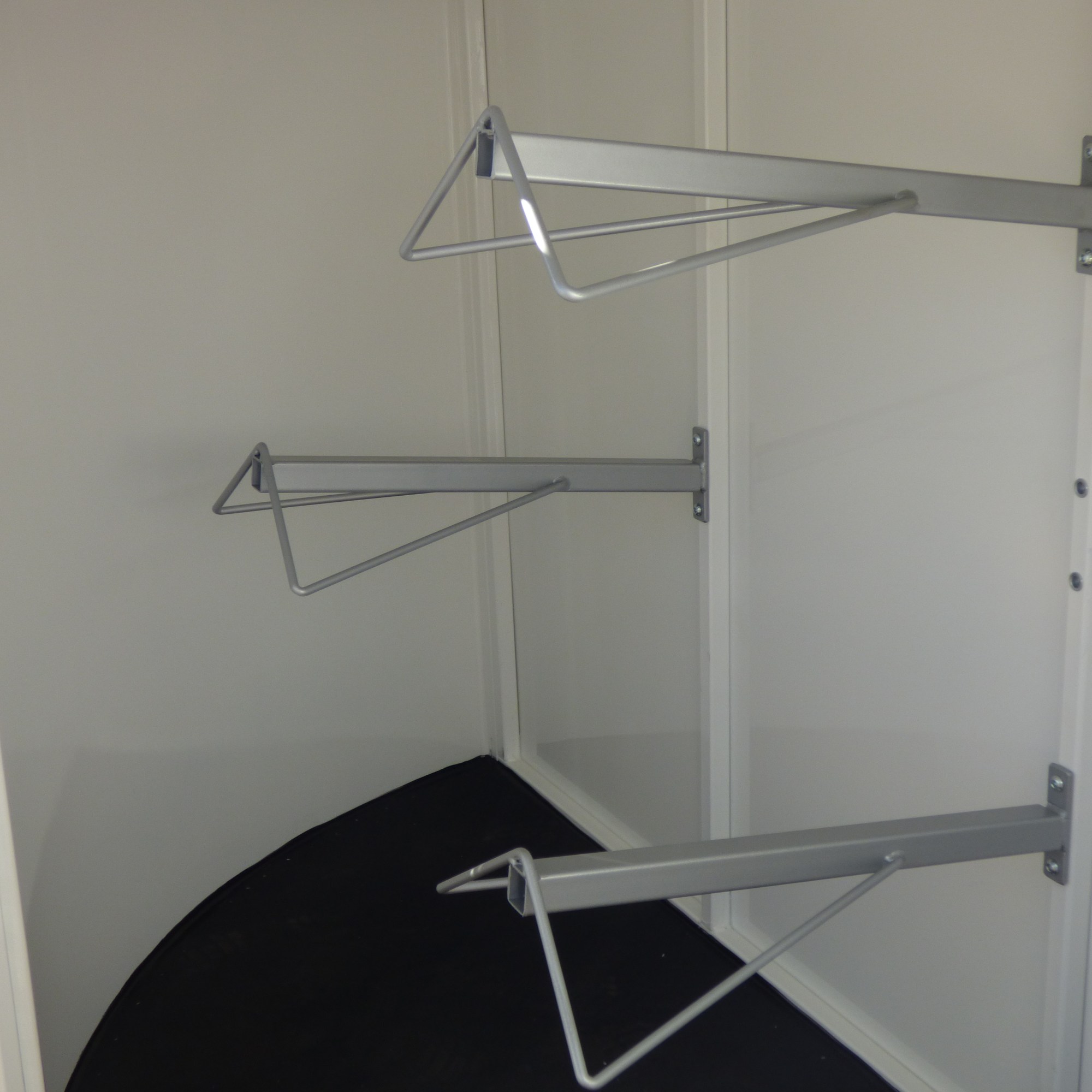

Swing out saddle rack 3x saddles $650
Swing out saddle rack 4x saddles $850
Swing out saddle box 3x saddles $1500
Swing out saddle box 4x saddles $1550
100mm higher roof $795
300mm longer front $600
12 months QLD registration including administration $285
White Colorbond tailgate $165
Fiamma F35 Awning 1.8m $1200
Water Tank 70L under floor (extended only) $450
Stainless steel sink & tap $250
Caravan door & screen $1,500
240v Power outlet includes double power point, interior and exterior light $1,625

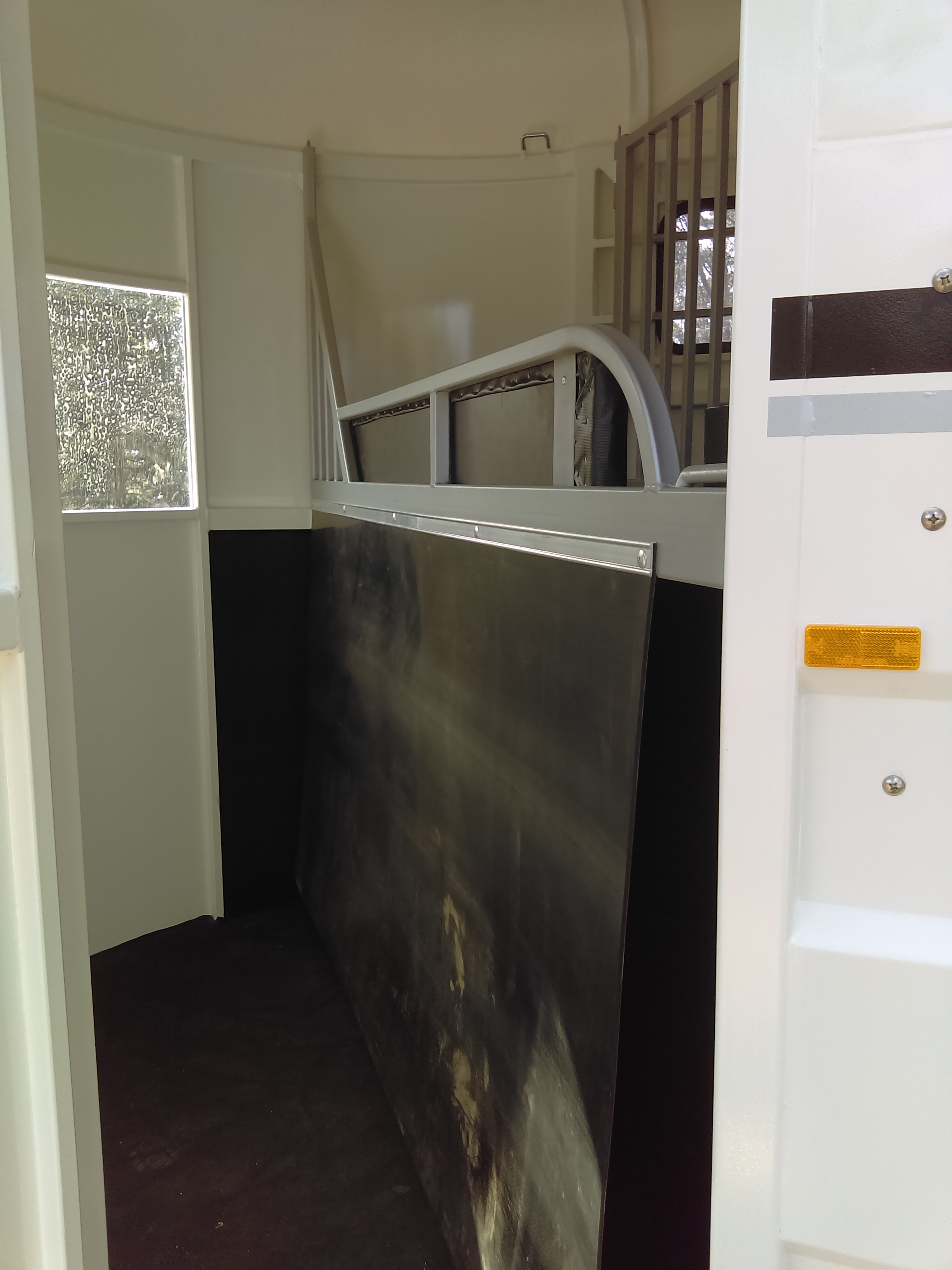

Drop rubber to divider $250

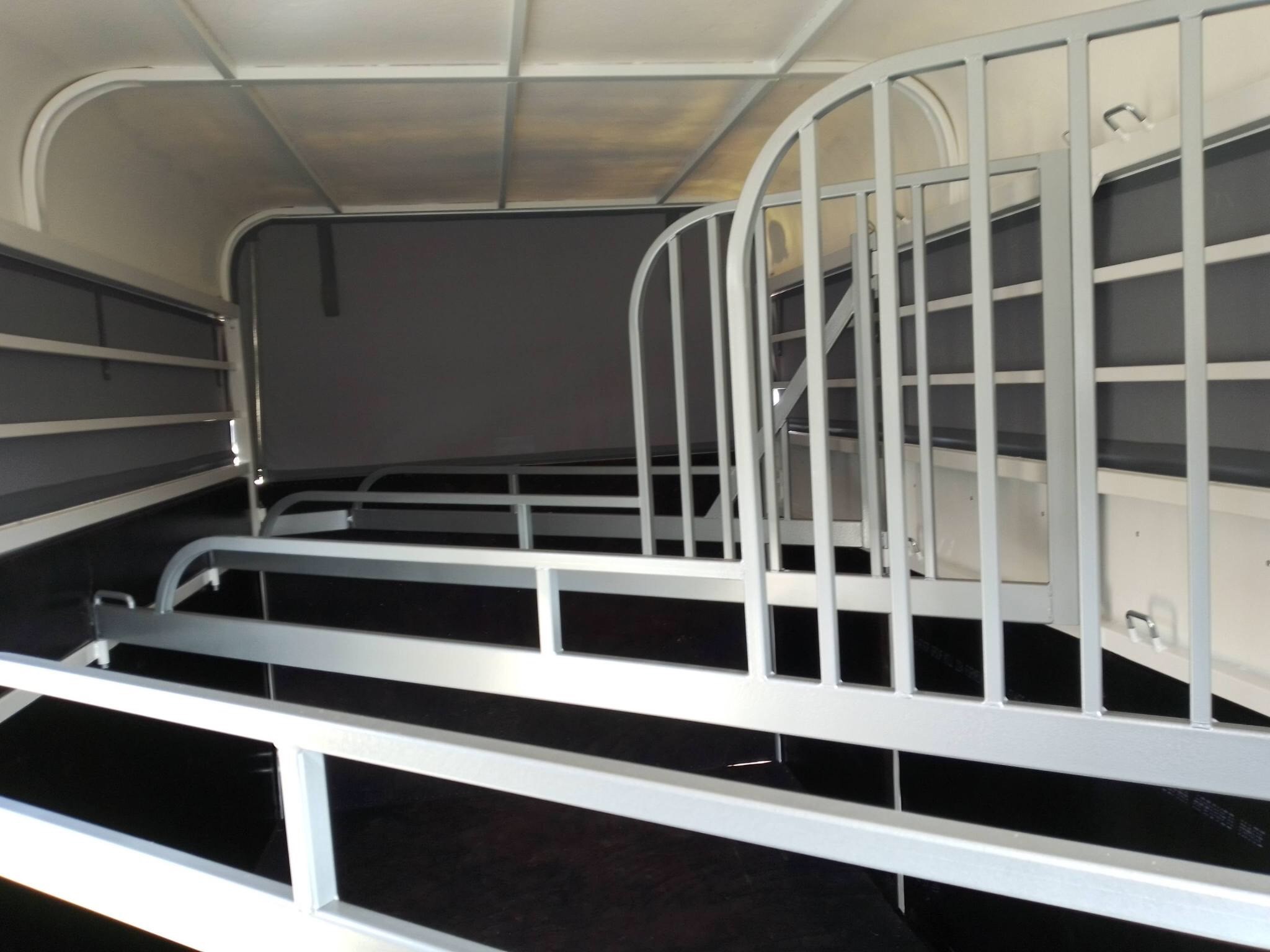

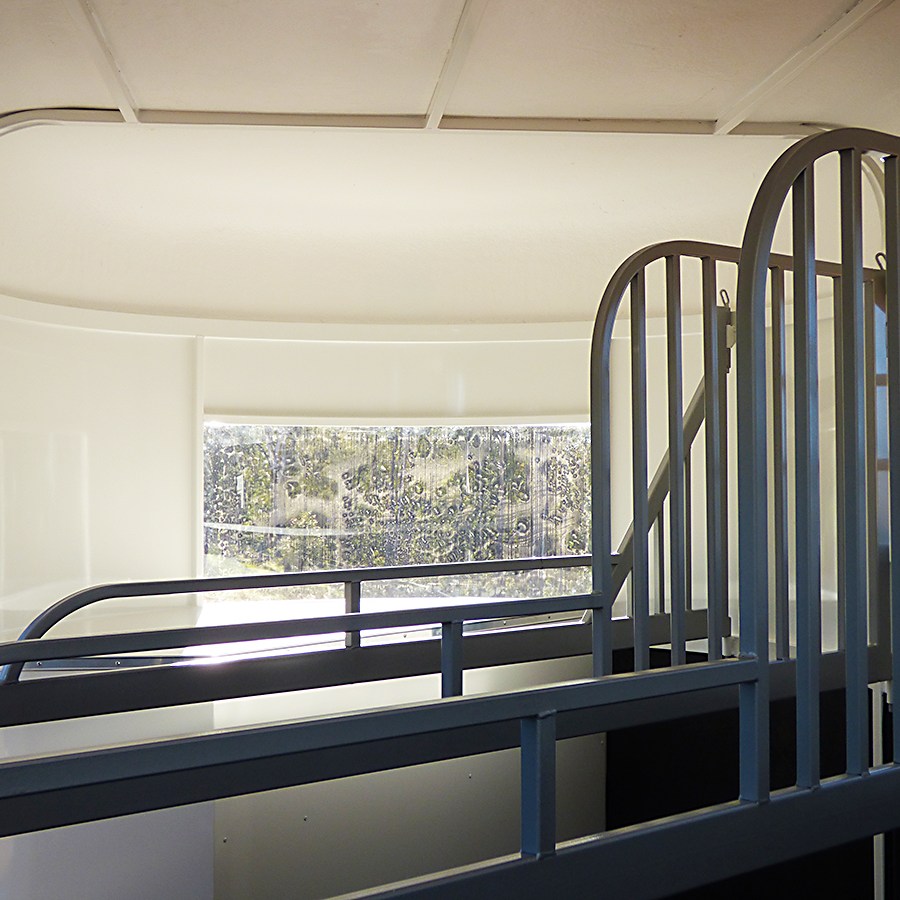

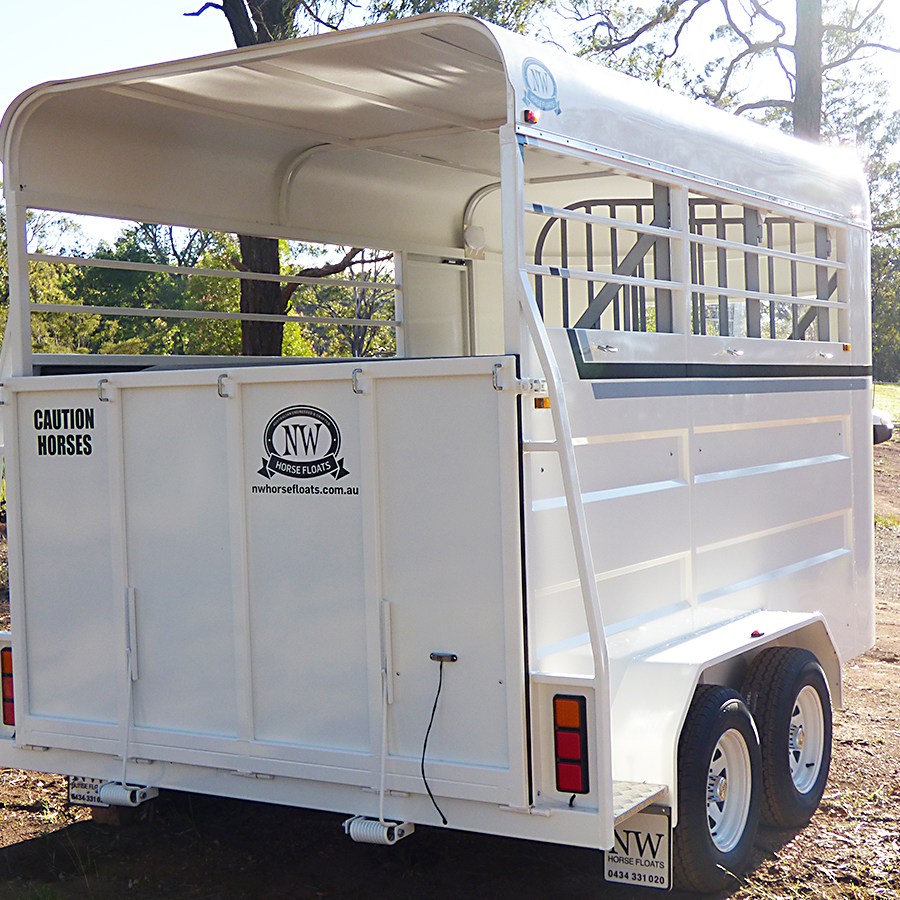

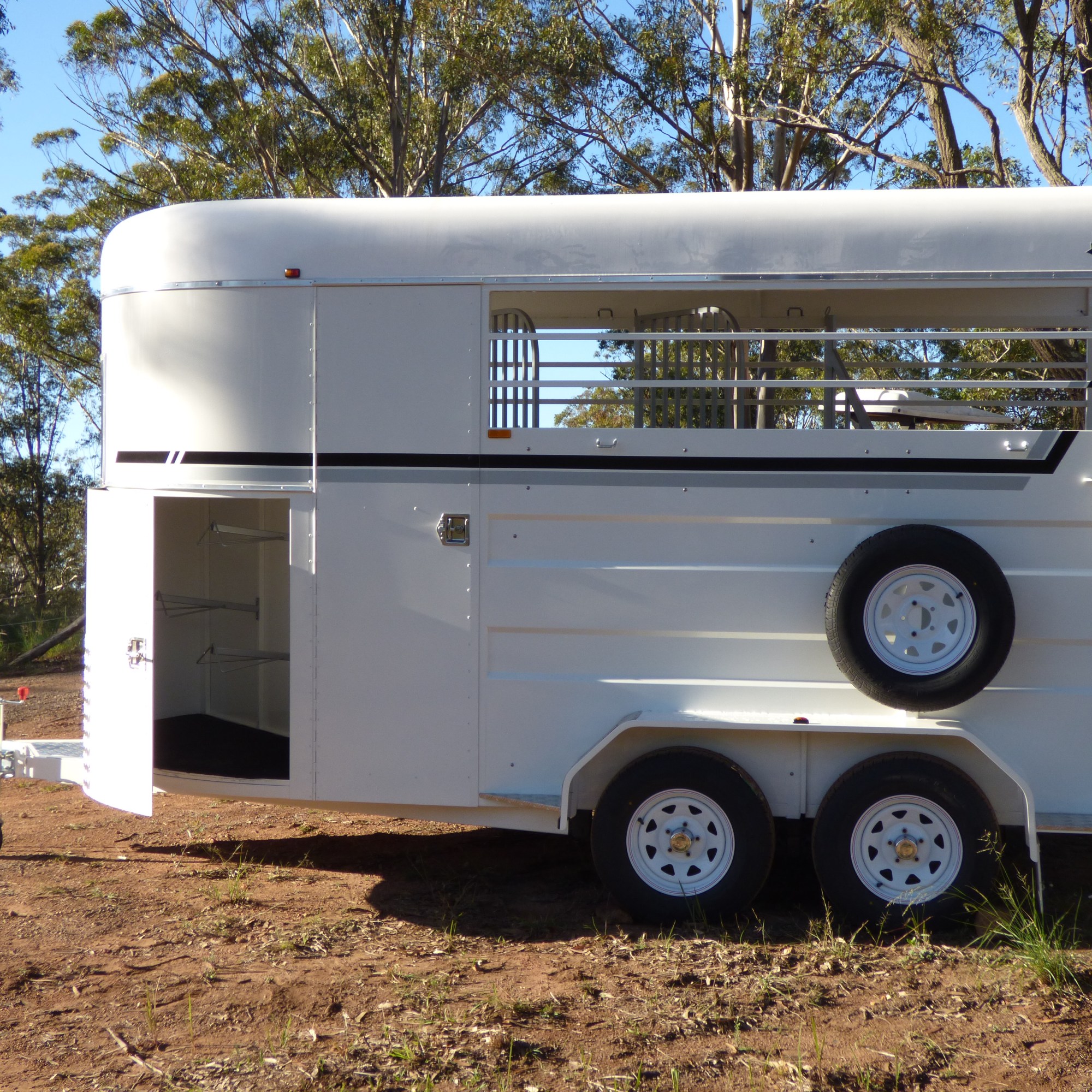

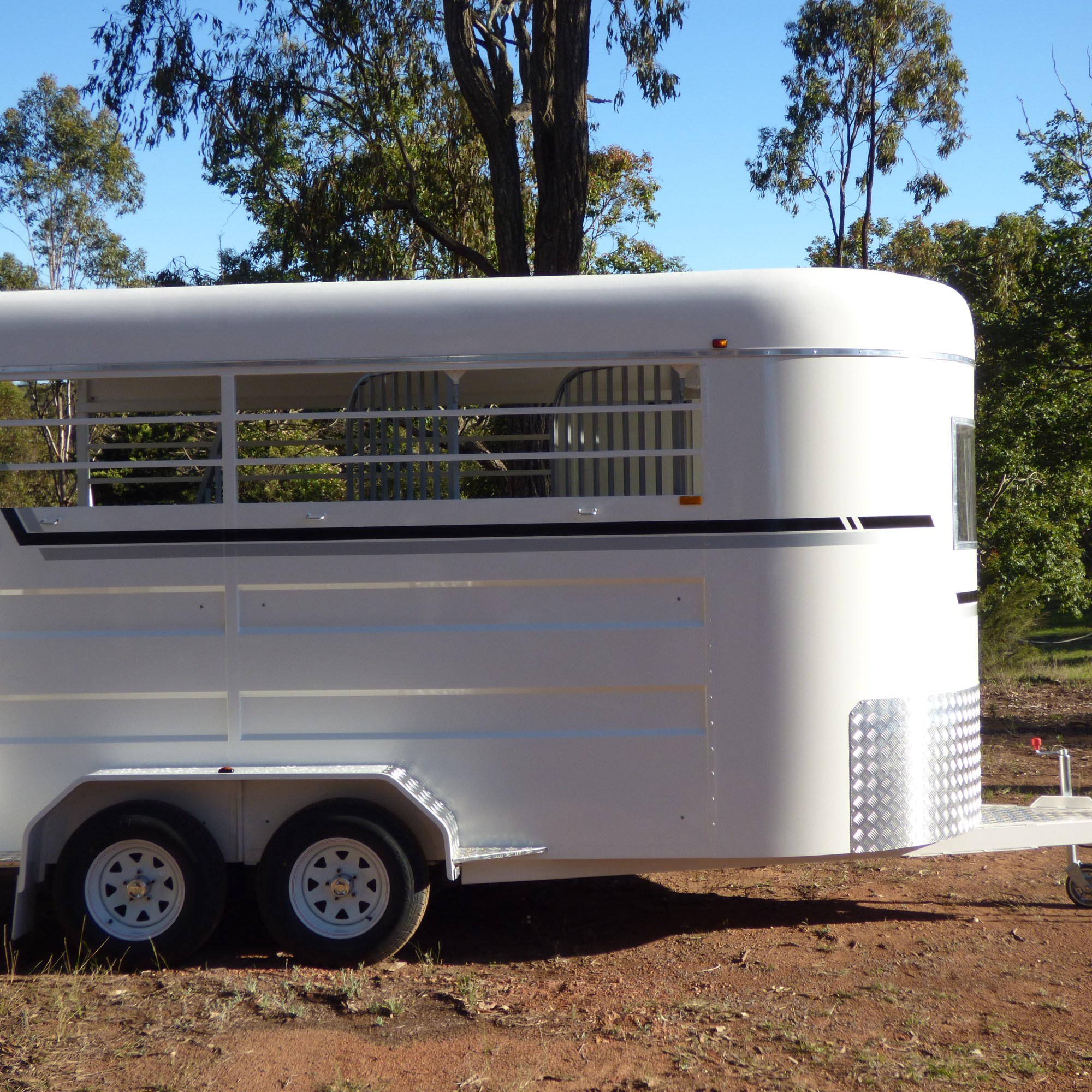

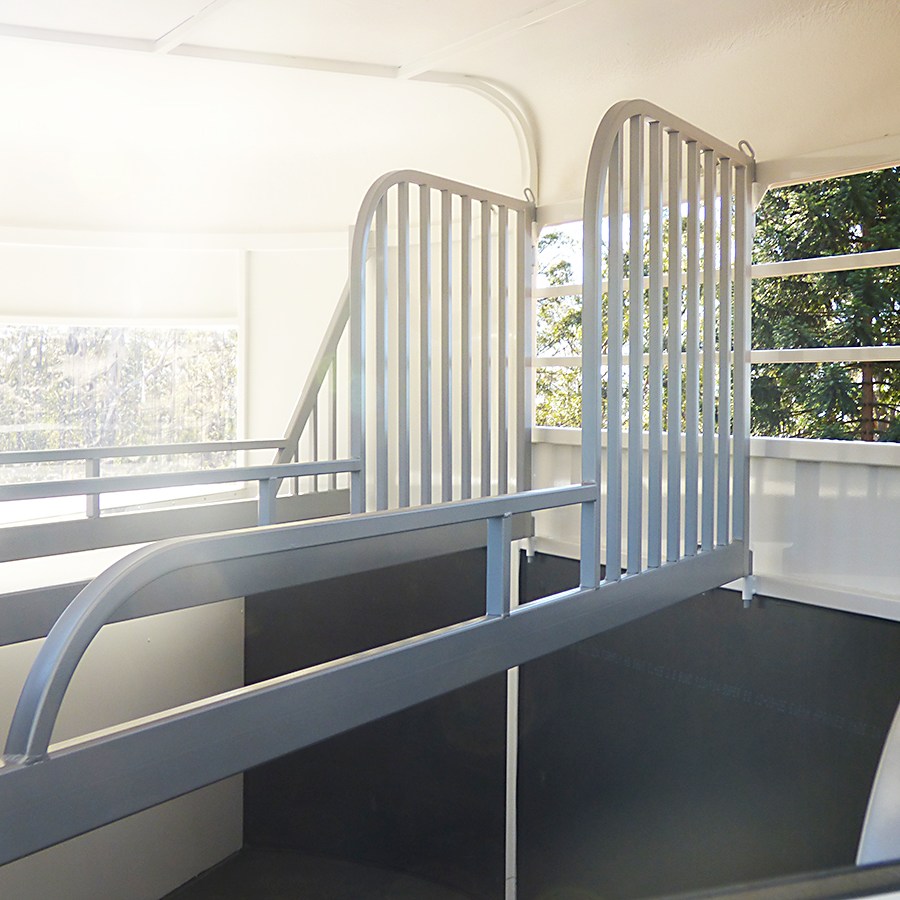

3 Horse Angle Open Model – $25,500 (Inc GST)

Specifications

Option Right or left facing Dividers
Internal length: 4120mm
Internal width: 1930mm
Internal height: 2210mm
Bay length: 2450mm
Bay width: 680mm
TARE – 1300kg
GTM – 2750kg-3500kg
ATM – 3200kg

Standard Inclusions

Option Right or Left facing Dividers
Australian made
Australian gal steel chassis & frame, with extra floor reinforcement
10″ 4 wheel brakes
Rocker Roller Suspension
Full zinc sheeting – rust resistant
Australian (Total Hardwood) F27 structural ArmourForm flooring
Sealed rubber flooring-water tight
Swing out jockey wheel
Removable dividers
One piece fibreglass roof
2 Pac white paint
Pinstripes – choice of colours
Kickboards
Spring loaded tailgate & latches
Large tinted front window
Side access door
5x 195/14″ light weight truck tyres
Sunraiser rims
600mm High stone guards on front
Interior light
Spare wheel mounted outside
Large LED tail lights
LED side markers
Breakaway unit for 3 & 4 horse model. (Not needed for 2 horse model.)

Optional Extras

Option Right or left facing dividers
Rug rack 2 horse load $775
Rug rack 3 horse load $885
Rug rack 4 horse load $995
Stallion divider $100
1x Sliding windows with screens $600
2x Sliding windows with screens $1,200
4x Sliding windows with screens $2,400
4x fold down windows & inserts POA
Rear storm cover $1050
Side curtains $1445
Rear lift up door with gas struts $950
Tack box on mud guard $600
Tack box on front draw bar $300
Full drop rubber on divider $220
Rubber added to head dividers $220
Rubber added to rear kick board $180
Enclosed divider – frame & board $280
Padded dividers 2x horse $450
Padded dividers 3x horse $660
Padded dividers 4x horse $880
Pop up vents x2 $200
Rotary air vents x2 $250
Tack room – 1/2 size access door $1200
Swing out saddle rack 3x saddles $650
Swing out saddle rack 4x saddles $850
Swing out saddle box 3x saddles $1500
Swing out saddle box 4x saddles $1550
100mm higher roof $795
300mm longer front $600
12 months QLD registration including administration $285
White Colorbond tailgate $165
Fiamma F35 Awning 1.8m $1200
Water Tank 70L under floor (extended only) $450
Stainless steel sink & tap $250
Caravan door & screen $1,500
240v Power outlet includes double power point, interior and exterior light $1,625
Drop rubber to divider $250

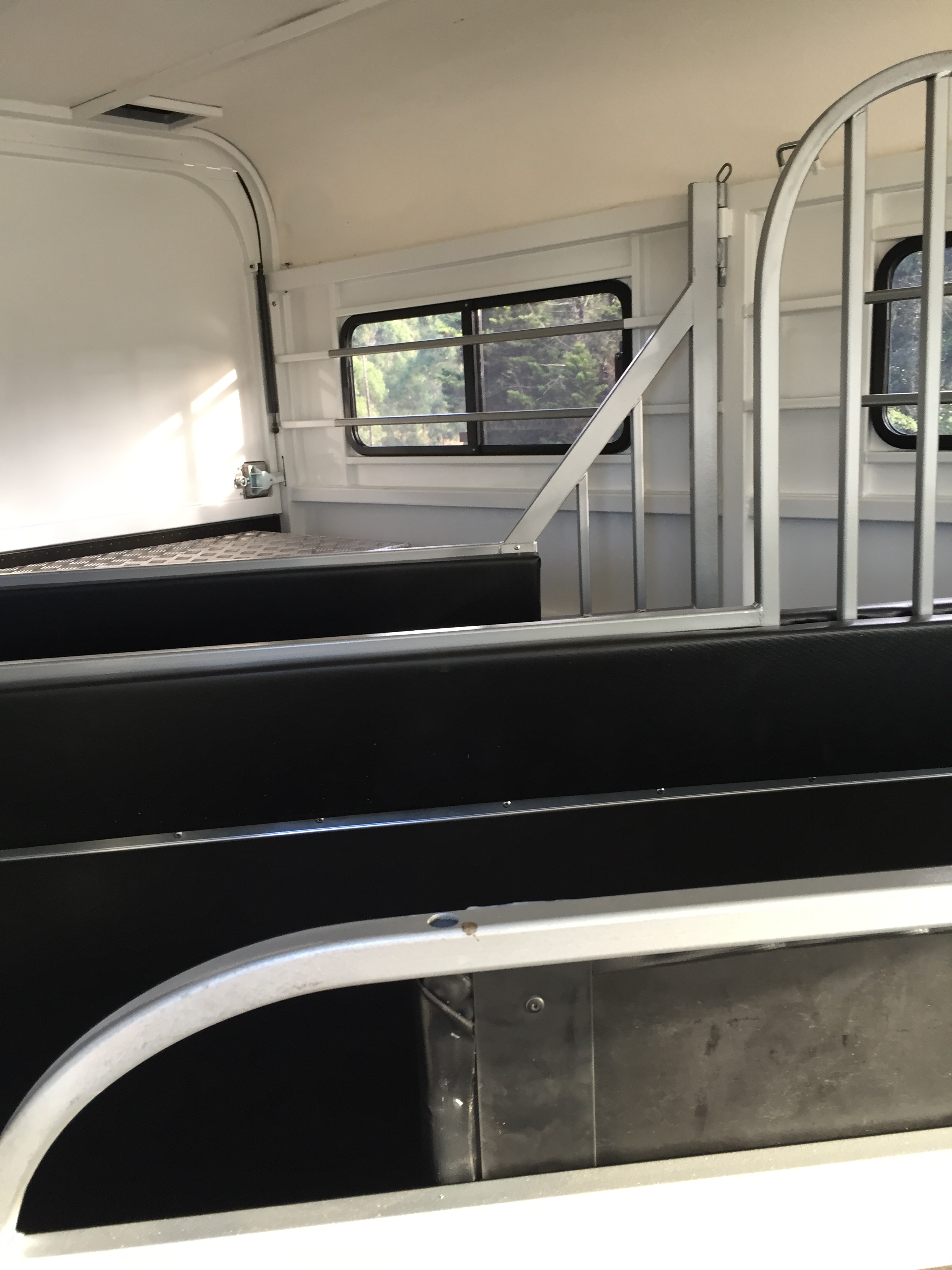

Standard ENCLOSED angle Models

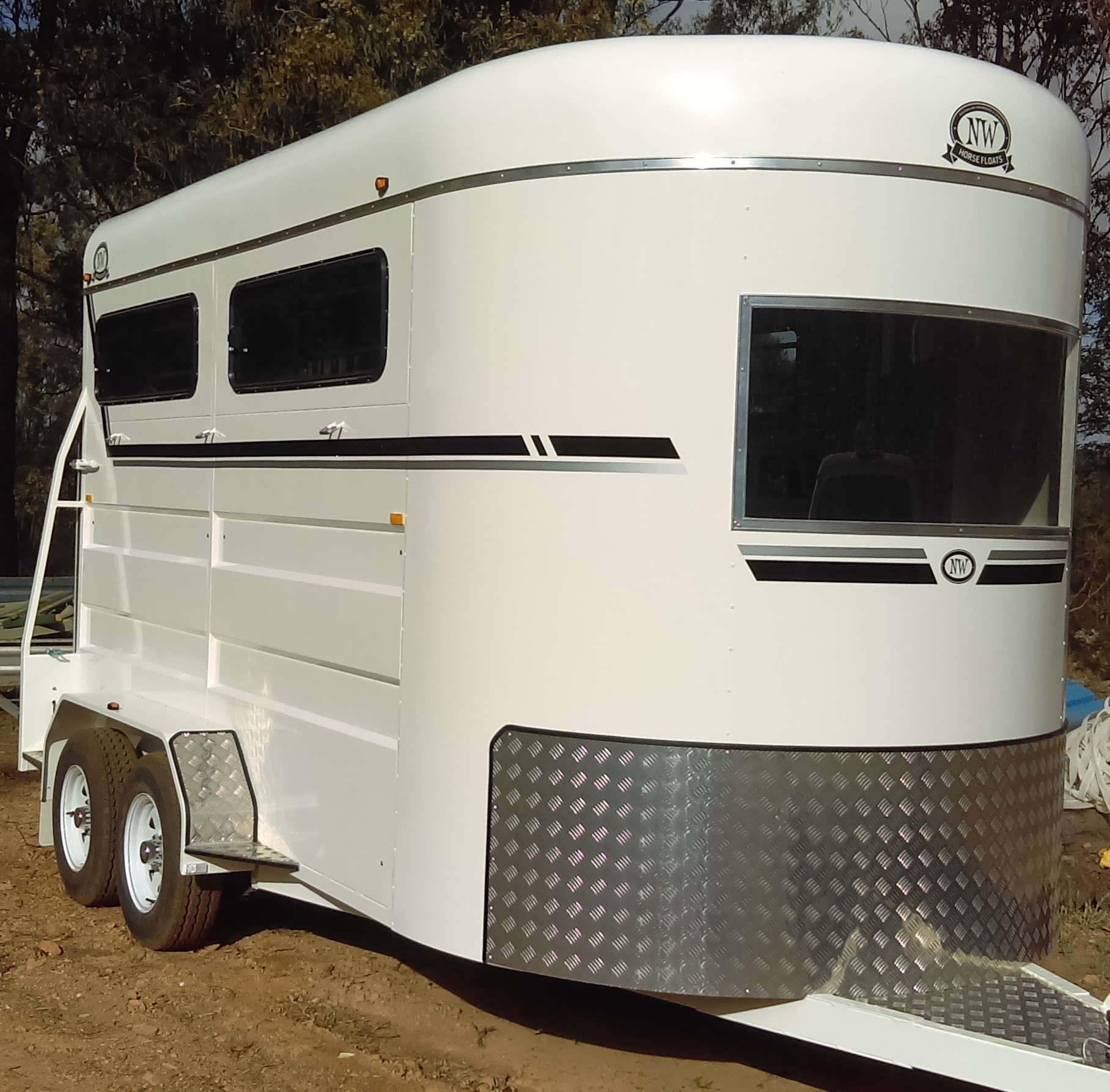

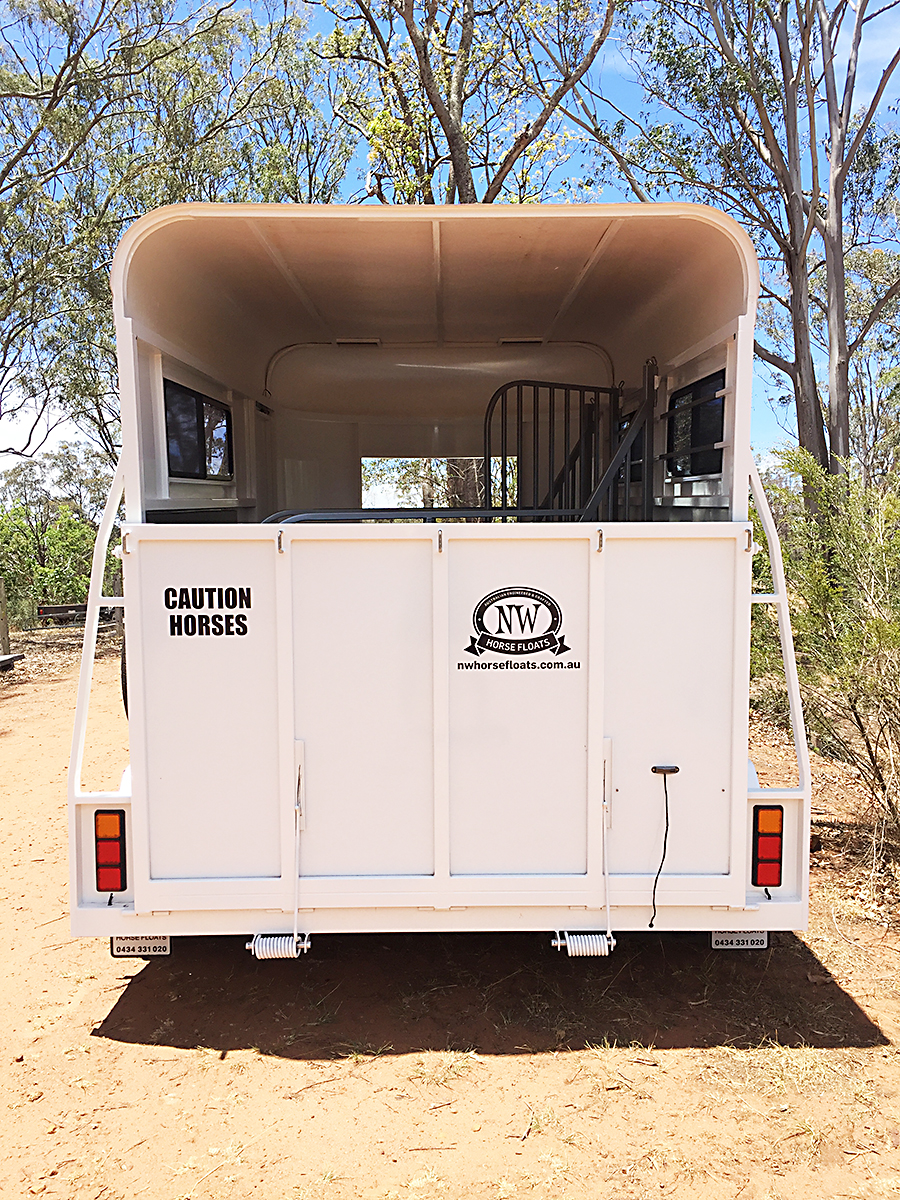

2 Horse Angle Enclosed Model – $26,500 (Inc GST)

Specifications

Internal length: 3600mm
Internal width: 1930mm
Internal height: 2210mm
Bay length: 2450mm
Bay width: 680mm
TARE – 1100kg
GTM – 2500kg
ATM – 2500kg

Standard Inclusions

Option Right or left facing Dividers
Australian made
Australian gal steel chassis & frame, with extra floor reinforcement
10″ 4 wheel brakes
Rocker Roller Suspension
Full zink sheeting – rust resistant
Australian (Total Hardwood) F27 structural Armourform flooring
Sealed rubber flooring-water tight
Swing out jockey wheel
Removable dividers
One piece fibreglass roof
2 Pac white paint
Pinstripes – choice of colours
Kickboards
Spring loaded tailgate & latches
Large tinted front window
Sliding tinted screened windows
Side access door
5x 195/14″ light weight truck tyres
Sunraiser rims
600mm High stone guards on front
Interior light
Spare wheel mounted outside
Large LED tail lights
LED side markers

Optional Extras

Option Right or left facing dividers
Rug rack 2 horse load $775
Rug rack 3 horse load $885
Rug rack 4 horse load $995
Stallion divider $100
1x Sliding windows with screens $600
2x Sliding windows with screens $1,200
4x Sliding windows with screens $2,400
4x fold down windows & inserts POA
Rear storm cover $1050
Side curtains $1200
Rear lift up door with gas struts $950
Tack box on mud guard $600
Tack box on front draw bar $300
Full drop rubber on divider $220
Rubber added to head dividers $220
Rubber added to rear kick board $180
Enclosed divider – frame & board $280
Padded dividers 2x horse $450
Padded dividers 3x horse $660
Padded dividers 4x horse $880
Pop up vents x2 $200
Rotary air vents x2 $250
Tack room – 1/2 size access door $1200
Swing out saddle rack 3x saddles $650
Swing out saddle rack 4x saddles $850
Swing out saddle box 3x saddles $1500
Swing out saddle box 4x saddles $1550
100mm higher roof $795
300mm longer front $600
12 months QLD registration including administration $285
White Colorbond tailgate $165
Fiamma F35 Awning 1.8m $1200
Water Tank 70L under floor (extended only) $450
Stainless steel sink & tap $250
Caravan door & screen $1,500
240v Power outlet includes double power point, interior and exterior light $1,625
Drop rubber to divider $250

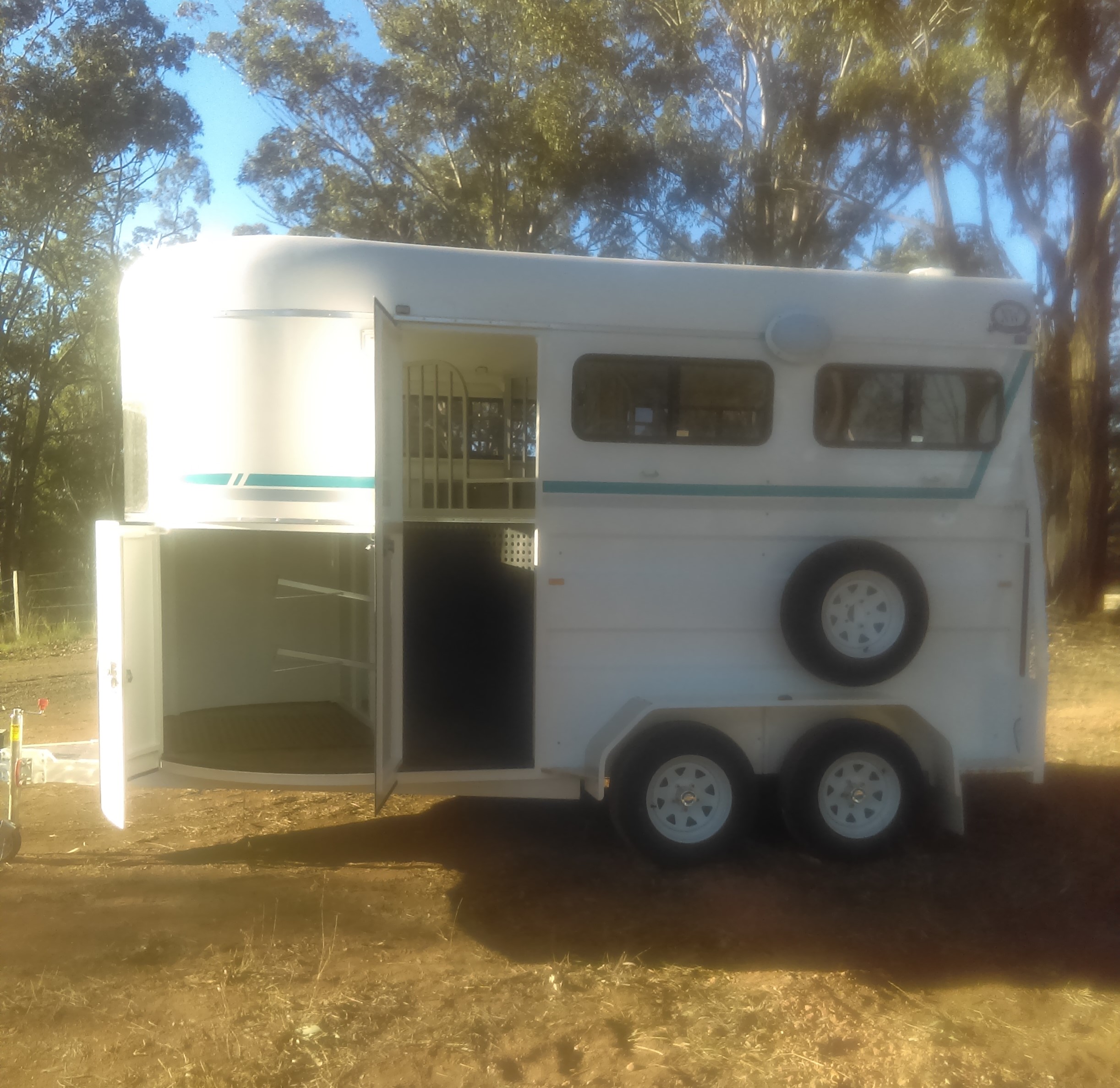

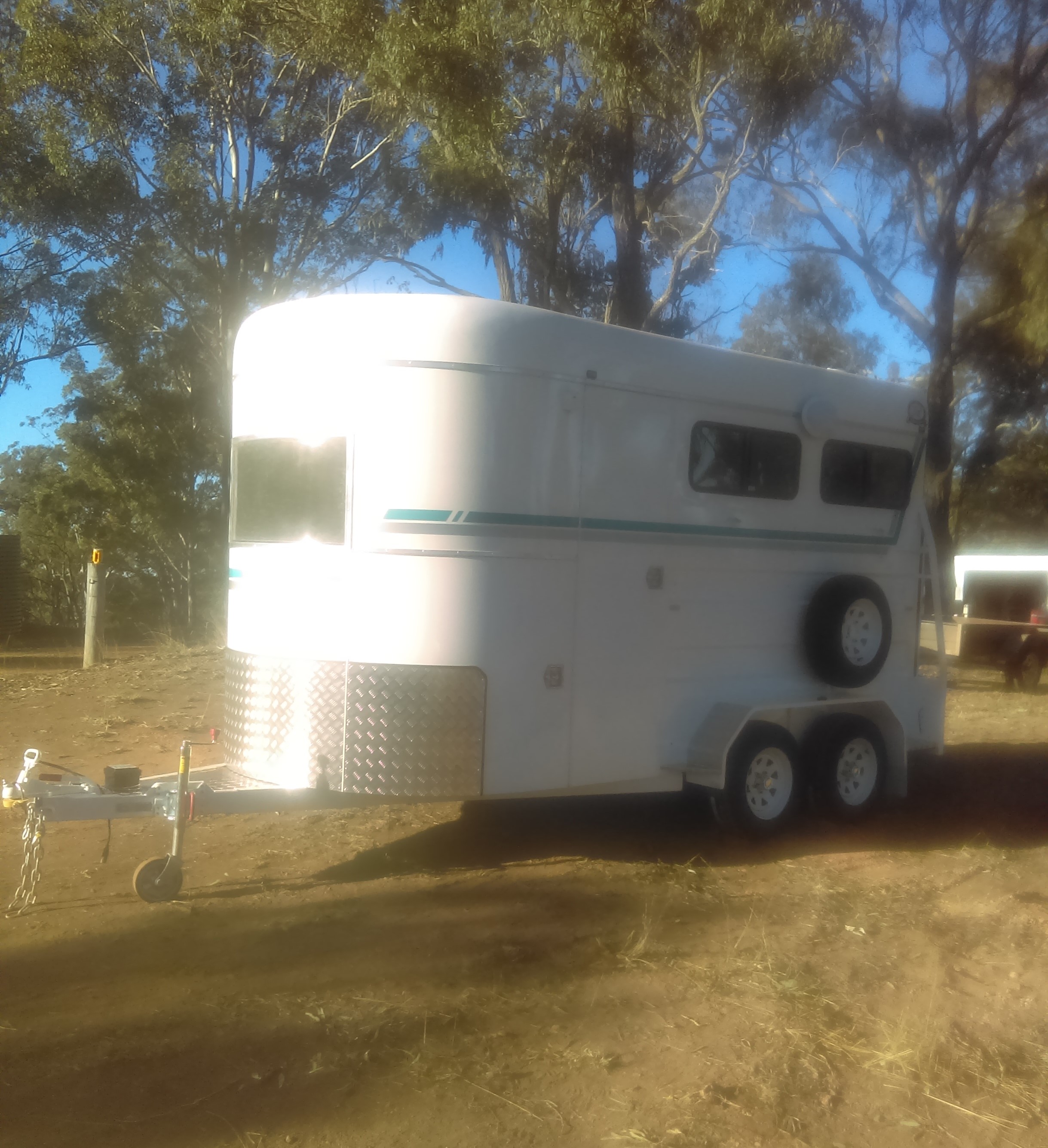

3 Horse Angle Enclosed Model – $28,500 (Inc GST)

Specifications

Internal length: 4120mm
Internal width: 1930mm
Internal height: 2210mm
Bay length: 2450mm
Bay width: 680mm
TARE – 1300kg
GTM – 2750kg-3500kg
ATM – 3200kg

Standard Inclusions

Option Right or Left facing Dividers
Australian made
Australian gal steel chassis & frame, with extra floor reinforcement
10″ 4 wheel brakes
Rocker Roller Suspension
Full zinc sheeting – rust resistant
Australian (Total Hardwood) F27 structural Armourform flooring
Sealed rubber flooring-water tight
Swing out jockey wheel
Removable dividers
One piece fibreglass roof
2 Pac white paint
Pinstripes – choice of colours
Kickboards
Spring loaded tailgate & latches
Large tinted front window
Sliding tinted screened windows
Side access door
5x 195/14″ light weight truck tyres
Sunraiser rims
600mm High stone guards on front
Interior light
Spare wheel mounted outside
Large LED tail lights
LED side markers
Break-away unit for 3 & 4 horse model. (Not needed for 2 horse model.)

Optional Extras

Option Right or left facing dividers
Rug rack 2 horse load $775
Rug rack 3 horse load $885
Rug rack 4 horse load $995
Stallion divider $100
1x Sliding windows with screens $600
2x Sliding windows with screens $1,200
4x Sliding windows with screens $2,400
4x fold down windows & inserts $760
Rear storm cover $1050
Side curtains $1500
Rear lift up door with gas struts $950
Tack box on mud guard $600
Tack box on front draw bar $300
Full drop rubber on divider $220
Rubber added to head dividers $220
Rubber added to rear kick board $180
Enclosed divider – frame & board $280
Padded dividers 2x horse $450
Padded dividers 3x horse $660
Padded dividers 4x horse $880
Pop up vents x2 $200
Rotary air vents x2 $250
Tack room – 1/2 size access door $1200
Swing out saddle rack 3x saddles $650
Swing out saddle rack 4x saddles $850
Swing out saddle box 3x saddles $1500
Swing out saddle box 4x saddles $1550
100mm higher roof $795
300mm longer front $600
12 months QLD registration including administration $285
White Colorbond tailgate $165
Fiamma F35 Awning 1.8m $1200
Water Tank 70L under floor (extended only) $450
Stainless steel sink & tap $250
Caravan door & screen $1,500
240v Power outlet includes double power point, interior and exterior light $1,625
Drop rubber to divider $250
